ISUZU

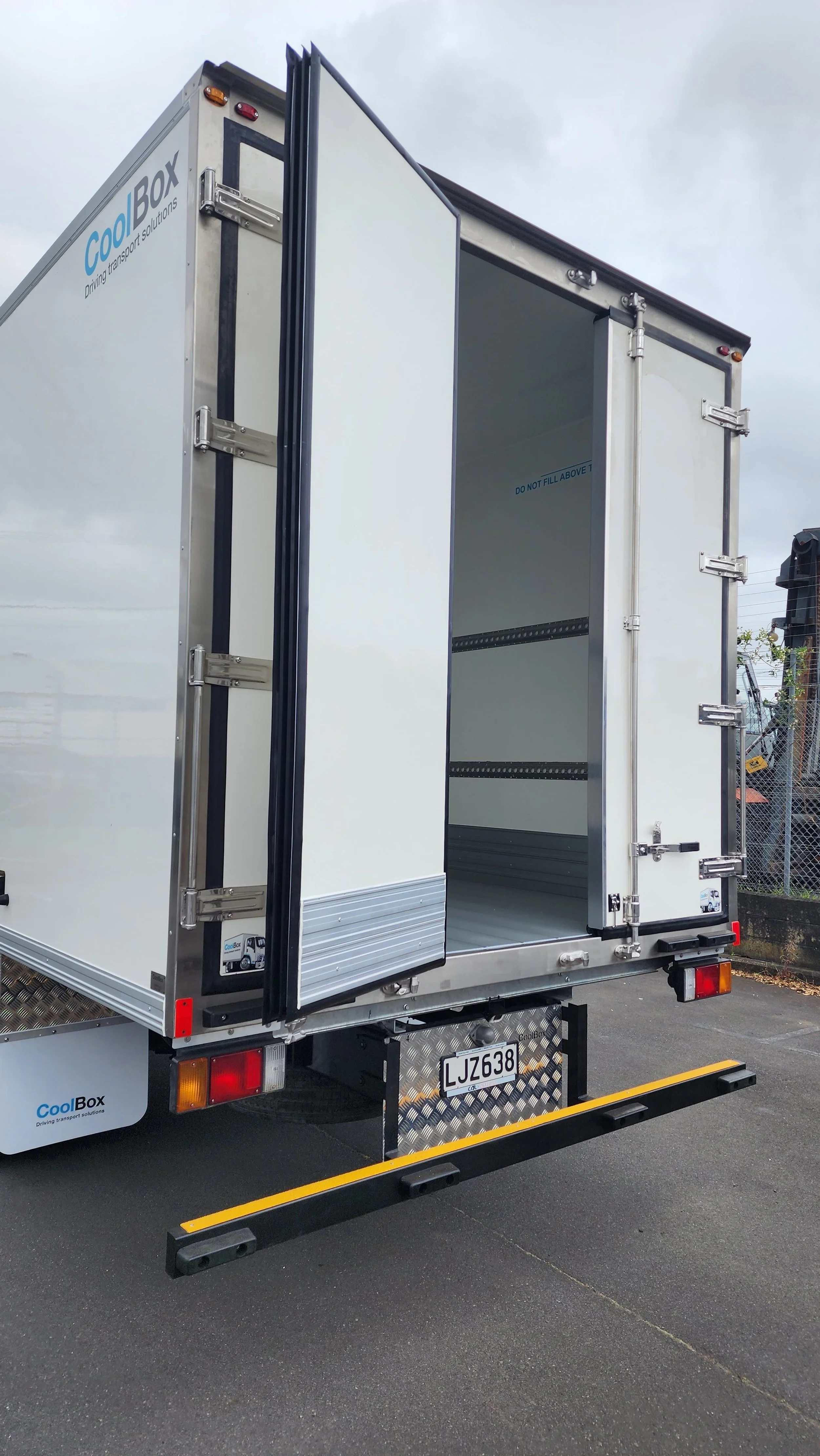

F-Series REEFER refrigerated Freezer body
Freezer rated single zone Reefer Body
6700L x 2484W x 2505mm H (External Dimension) +/-10mm
6520L x 2314W x 2300mm H (Internal Dimension)
Front wall and Roof panel 105mm
Wall panels 85mm. High Gloss FRP skin + PU + High Impact FRP skin
Rear triple doors, Left single door
Aluminium corrugated flooring with upstand kick plates
2 sets Stainless Steel cargo tracks
N-Series NPR & NMR DRY GOODS Pantech Box Body
Heavy Duty Alloy Floor
Honeycomb Panels
Translucent Roof Panel
3 x Sliding Load Restraints
Fixed Rear Step and Grab Handles
4,360mm L x 1,780mm W x 2,040mm H Internal Dimensions
Roller Shutter Rear Door
Cubic Volume: 16m
3 Pallet Capacity

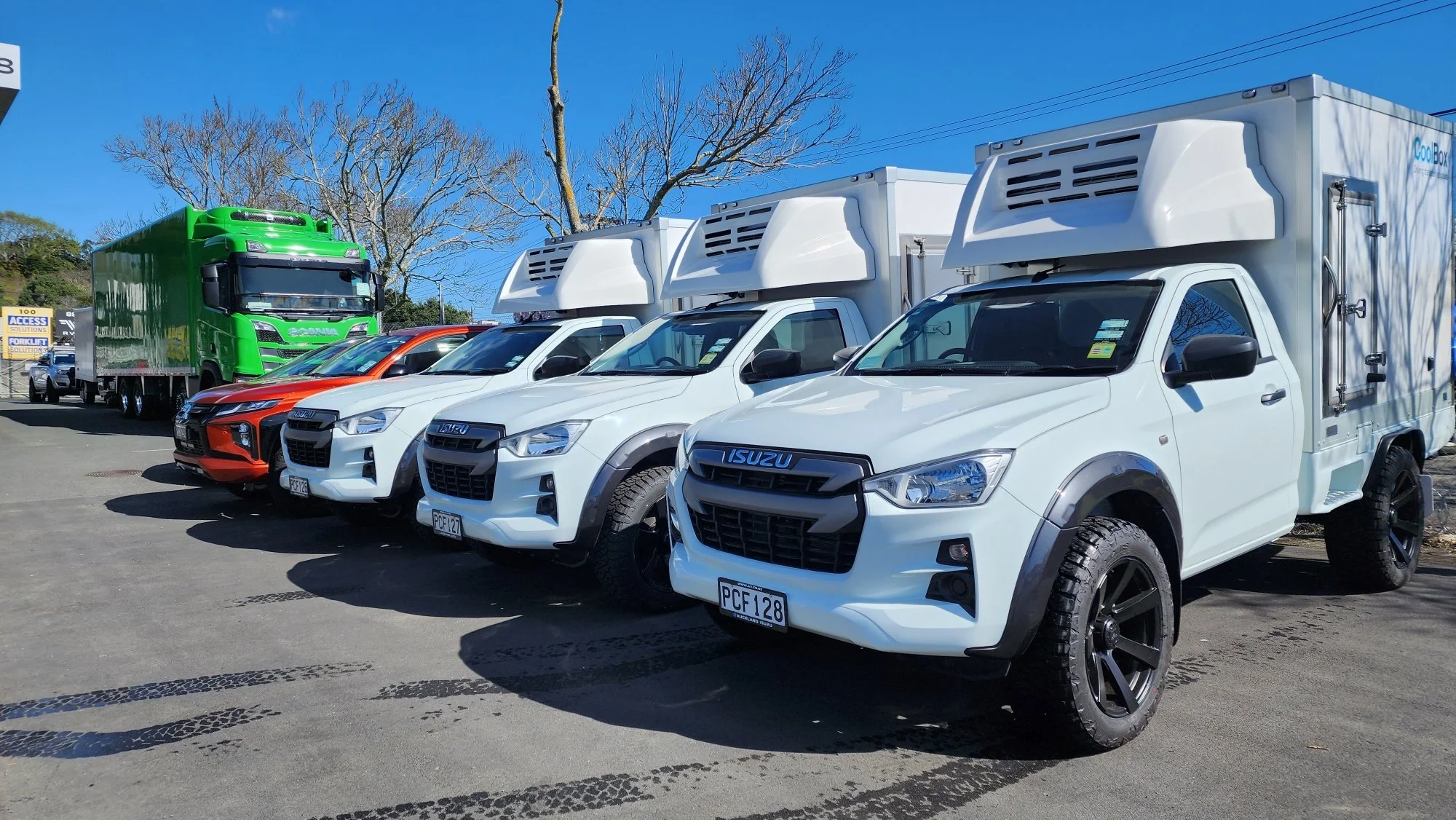

Isuzu Dmax Ute chiller body
2,420mm L x 1,800mm W x 1,750mm H External Dimensions
4.5 cubic meters cargo volume
2 pallet capacity for chiller, ambient or freezer
Side door and double rear doors with strip curtains
Freezer Spec walls 100mm thick to minus 25 degrees Celsius
